Features Of Diesel Driven Steam Boiler

2016-05-13

As one of oil fuel steam boilers, diesel drive steam boiler is widely used in industries that need smaller quantity of steam, some of which are used in larger industry. The most used diesel fuel steam boilers are WNS type steam boiler and SZS D type water tube boiler. These boilers can burn both oil and gas with reliable operation to provide high quality steam and save cost for industry.

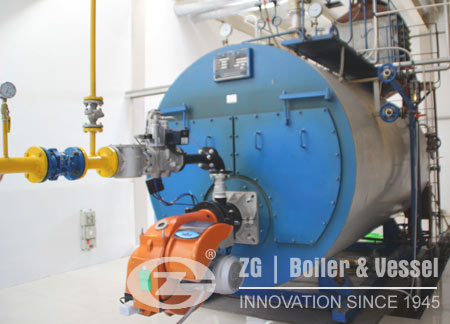

WNS type steam boiler

This boiler is also called three pass smoke tube boiler or fire tube boiler. The smoke or heat flowing inside the boiler tubes and the water surrounds outside of the tubes to be heated and turned into high temperature steam. This type of boilers are generally used for industries that need not super-heated steam for production process. For example steam boiler for rendering plant, plastics industry, coatings and automotive industries, bitumen industry, construction equipment industry and other industries that need steam 1-20 t/h under pressure of 1.25-1.6 MPa. This boiler has a simple structure and a large volume of water and steam and good adaptability to changes in load, the water quality requirements is lower

SZS D type water tube boiler

D type water tube boiler is water tube boilers that in which water circulates in tubes. Fuel is burned inside the furnace, creating hot gas which heats water in the steam-generating tubes. It is in packaged style and easy to transport and install. This boiler can get the capacity of 6~35t/h under pressure1~2.5Mpa, temperature 193~300℃, which can burning heavy oil, light oil, natural gas, coke oven gas, etc. Boilers used in chemical industries, rendering plant, plastics industry, coatings and automotive industries, bitumen industry, construction equipment industry and other industries that need steam can also use both of the boiler.

Generally speaking, diesel driven steam boiler is designed in low pressure, which is safe than other high pressure boiler. Besides, automatic control and multiple protection devices ensure the reliable operation. This boiler is more environmental friendly than coal fired boiler. Packaged style is easy to transport and install, is the popular equipment for most industries.

oil fuel steam boiler,diesel driven steam boiler,diesel fuel steam boiler,D type
