2 Ton Coal Fired Chain Grate Boiler

ModelDZL series coal fired boiler

Capacity2 ton

Applicationcleaning service

case case case


2 ton coal fired boiler specification

Rated steam capacity: 2t/h
Rated working pressure: 1.0MPa
Rated steam temperature: 184°C
Feed water temperature: 20°C
Exhaust gas temperature: 168.5°C
Design thermal efficiency: 77.9%
Design fuel: class II bituminous coal

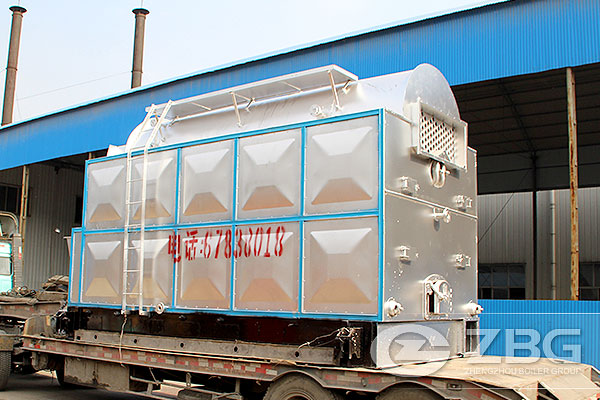

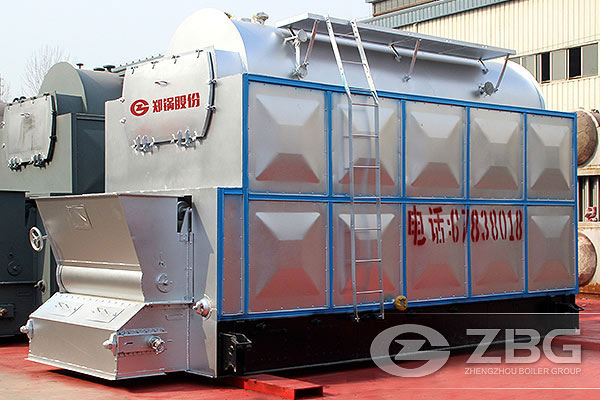

Packaged chain grate coal fired steam boiler

The DZL2-1.0-AII single-drum horizontal packaged traveling grate industrial steam boiler is a three-pass water-fire tube boiler, the two sides of chain grate industrial steam boiler is equipped with water cooling wall, forming the boiler's furnace and convection gas flue and the inner boiler drum is equipped with single-return corrugated tube. The coverage rate of the front arch and back arch reach 77.3%, beneficial for combustion of fuel with low volatile matter.
With complete control monitors, running of the boiler is safe and reliable. This DZL2-1.0-AII coal steam boiler has compact structure and small volume and leave the factory in packaged form. When the boiler arrives at the site, the boiler can start running just after the feeding machine, slag remover, valves, pipes are installed. So the packaged steam boiler has the advantages of convenient installation, short installation cycle and less basic construction investment.


In February, 2015, a Cleaning Services Limited Company ordered one set of 2 ton packaged chain grate coal fired boiler. The company is mainly engaged in hotels, hospitals, bedding, table supplies cleaning and washing service in Luoyang, Yichuan, Yiyang, Songxian, Luanchuan, Ruyang, Yangshi and other cities. The company has three automatic washing lines with an ability of daily 20,000 sets of bedding or table supplies. This time the company purchased our coal fired boiler for better its service ability.
