Pneumatic-opening Autoclave

Steam autoclave, through pneumatic cylinder to control autoclave door’s startup and shutdown, can be called pneumatic-opening autoclave. Convenient and safe design, pneumatic-opening autoclave can adjust door opening direction like side-opening and top-opening.

Pneumatic-opening Autoclave
  • Diameter

    5m-60m

  • Pressure

    1.0MPa-1.6MPa

  • Length

    >1.5m

  • Application

    Building Material

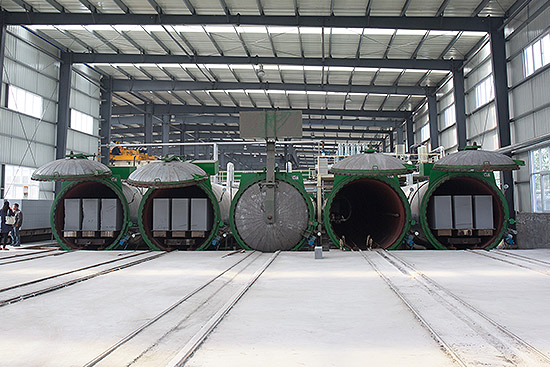

pneumatic-opening autoclave1.jpg

High-quality raw materials

a. Professional imported rubber seal, good sealed, easy installation, long service life.

b. Autoclave cover flange adopts 16Mn solid forging process, with ultrasonic nondestructive testing, being higher national pressure vessel standard.

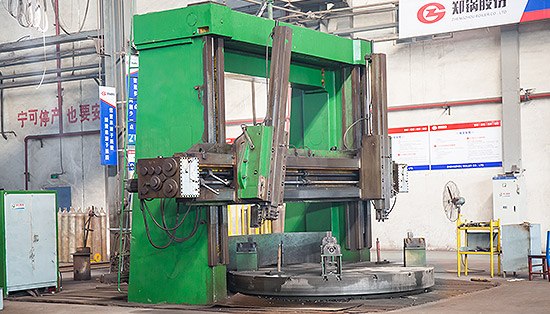

pneumatic-opening autoclave2.jpg

Advanced processing technology

a. Pipeline operations, automatic welding, stable quality and high efficiency.

b. CNC vertical lathe directly rolls autoclave door steel, reduce number of welding, improving its leakproofness and safety.

pneumatic-opening autoclave3.jpg

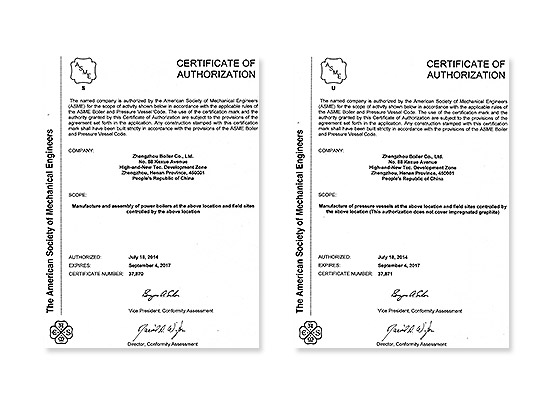

ASME Certifications

ZBG holds Boiler and Pressure Vessels ASME certification of American Society of Mechanical Engineers, with large-scale power station boiler project total package qualification can provide customers a full range of products and services.

Pneumatic-opening Autoclave system
Model kettle diameter
(m)
Effective length Maximum working
pressure(℃)
Maximum working
temperature(℃)
Design pressure
(Mpa)
Design
temperature(℃)
Working mediu Total length
L(m)
Width
W(m)
Height
H(m)
FGZFQ 1.0-1.65 x L Φ1.65 Customized 1.0 183 1.1 187
Saturated
steam
Condensate water
L+0.65 2.619 2.595
FGZFQ 1.3-1.65 x L Φ1.65 1.3 195 1.4 198 L+0.65 2.619 2.595
FGZFQ 1.0-2.0 x L Φ2.0 1.0 183 1.1 187 L+0.9 2.965 3.225
FGZFQ 1.1-2.0 x L Φ2.0 1.1 187 1.2 192 L+0.9 2.965 3.225
FGZFQ 1.3-2.0 x L Φ2.0 1.3 195 1.4 198 L+0.9 2.965 3.225
FGZFQ 1.5-2.0 x L Φ2.0 1.5 201 1.6 204 L+0.9 2.965 3.255
FGZFQ 1.3-2.2 x L Φ2.2 1.3 194 1.4 197 L+1.3 3.288 3.43
FGZFQ 1.5-2.2 x L Φ2.2 1.5 201 1.6 204 L+1.3 3.288 3.43
FGZFQ 1.3-2.4 x L Φ2.4 1.3 194 1.4 197 L+1.56 3.154 3.917
FGZFQ 1.5-2.4 x L Φ2.4 1.5 201 1.6 204 L+1.56 3.154 3.917
FGZFQ 1.3-2.5 x L Φ2.5 1.3 195 1.4 197 L+1.56 3.254 4.017
FGZFQ 1.5-2.5 x L Φ2.5 1.5 201 1.6 204 L+1.56 3.254 4.017
FGZFQ 1.3-2.68 x L Φ2.68 1.3 194 1.4 197 L+1.754 3.28 4.143
FGZFQ 1.5-2.68 x L Φ2.68 1.5 201 1.6 204 L+1.754 3.28 4.143
FGZFQ 1.3-2.85 x L Φ2.85 1.3 194 1.4 197 L+1.754 3.58 4.493
FGZFQ 1.5-2.85 x L Φ2.85 1.5 201 1.6 204 L+1.754 3.58 4.493
FGZFQ 1.3-3.0 x L Φ3.0 1.3 194 1.4 197 L+1.8 4.537 4.66
FGZFQ 1.5-3.0 x L Φ3.0 1.5 201 1.6 204 L+1.8 4.537 4.66
FGZFQ 1.3-3.2 x L Φ3.2 1.3 194 1.4 197 L+1.9 4.74 5.131
FGZFQ 1.5-3.2 x L Φ3.2 1.5 201 1.6 204 L+1.9 4.74 5.131
