150000 Cubic Meter AAC Plant

Capacity:150,000m³AAC Blocks/year

• Raw materials:Sand Lime,Fly Ash



  Anvantages:

  large variety of sizes: AAC can be produced in a large variety of sizes, from standard blocks to large reinforced panels;

  excellent thermal insulation: AAC has a very low thermal conductivity and therefore a very high thermal energy efficiency is achieved. This results in savings on heating and cooling costs;

  extreme lightweight: AAC weighs approximately 50% less than other comparable building products;

  high compressive strength: AAC is a solid product, therefore making it highly load bearing. The entire surface area is used in structural calculations;

  high dimensional accuracy: As a result of its dimensional accuracy, AAC is extremely easy to install, as no thick set mortar is required;

  great acoustic insulation: The porous structure of AAC provides a high acoustic insulation;

  high fire resistance: AAC has an extremely high fire rating of at least 4 hours and more;

  termite resistance: AAC can not be damaged by termites or insects;

  high workability: As a result of the excellent size/weight ratio, constructing with AAC is very rapid. Even though AAC is a solid building material, it can be cut, sawn, drilled, nailed and milled like wood, making it an extremely workable product.

  Raw material: Fly ash, quick lime, cement, gypsum, paste, aluminum paste



  150000 Cubic Meter AAC Plant Equipment List

  No.	Name	Unit	quantity

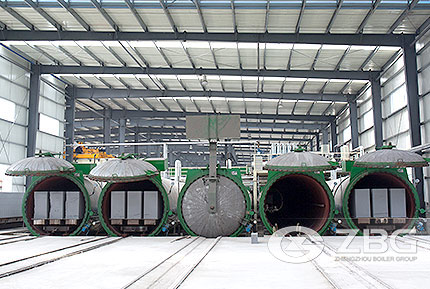

  1	Ф2.0×31m autoclave	set	6
  2	DZL6-1.6-AII	set	1
  3	PEX250×750 jaw crusher	set	1
  4	Φ1.83×7m ball miller	et	1
  5	Pouring mixer	set	1
  6	20m3 storage for slurry	set	1
  7	8m storage for slurry	set	1
  8	Ferry car for mixer	set	1
  9	4.2×1.2m mould car	set	30
  10	side plate	piece	177
  11	4.2m cutting line	set	1
  12	Peel overturning platform	set	1
  13	stacker for semi-finished  products	unit	1
  14	clamping machine	set	1
  15	4.2m.trolley	unit	49
  16	The winch	set	5
