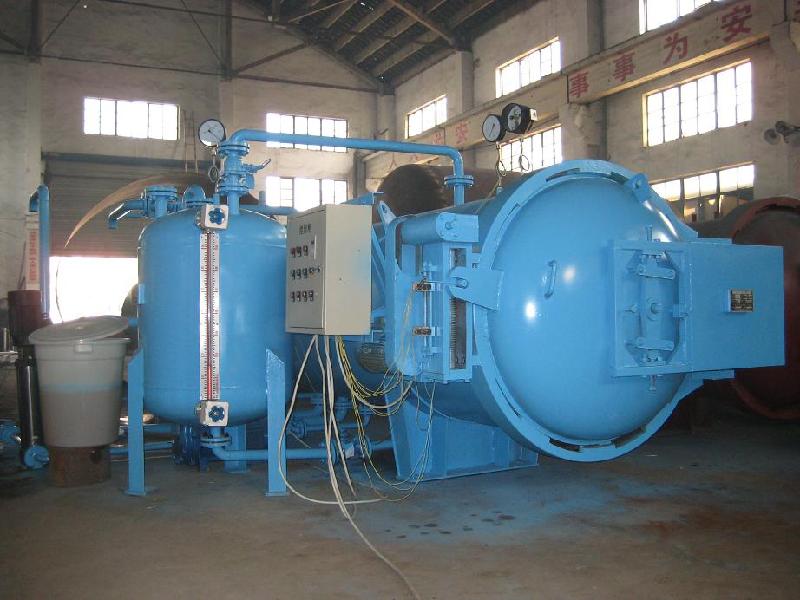

The technology advantages of horizontal impregnation tank

2016-05-13

our company's Horizontal Impregnation Tank adopts automatic hydraulic door . Hydraulic door opening mechanism consists of hydraulic cylinders, hydraulic cylinders revolving door, the shaft and the autoclave door connecting device, clamp positioning device, a hydraulic cylinder stopper, hydraulic systems and other components. Autoclave door can be opened by the operator on the first transfer gate control valves of the hydraulic cylinder or button turn clamps, the clamps and the tank cover flange gear teeth staggered. Then open the door of the hydraulic cylinder control valve or button to achieve autoclave door open. When the door is closed, first open the door of the hydraulic cylinder control valve or button to achieve kettle door closed, then open the revolving door of the hydraulic cylinder control valve or button, turn the clamp, so that the teeth and tank cover flange clamp teeth on the positive, autoclave door locked.

The machine has simple structure, low operation, open light. The hydraulic cylinder limit device achieves kettle door's open and close automatically , which makes the impregnation tank convenient, safe and reliable in operation .

The weld of flange and butt tube section of tank use double-sided submerged arc automatic welding, and 100% inspection and the whole heat treatment after welding, which eliminates the forging stress and welding stress. The butt weld has received the most effective treatment, to ensure the product’s quality and operating life. The heat treatment process in the field of the domestic pressure vessel production areas has been a leading role.

Impregnation Tank
