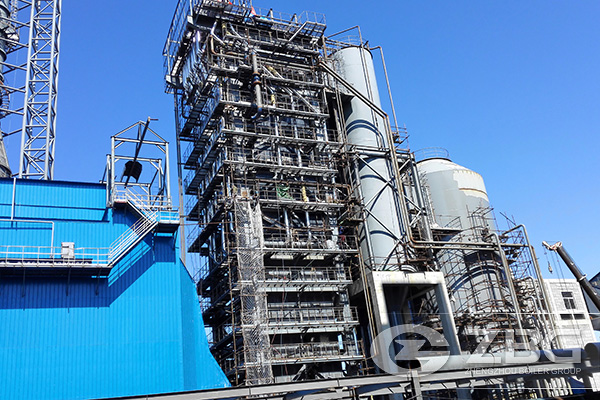

20 Ton Waste Heat Boiler Model and Size

For the 20 ton waste heat boiler model and size , we need to understand from two aspects.

1. The model of the waste heat boiler is not like gas boiler and coal fired boiler. The model of these fuel boilers is determined according to the specific furnace type, such as SZS gas boiler and DZL coal-fired boiler, and the model of the waste heat boiler is determined by the rest of the heat carrier. For example, an example of a 20 ton waste heat recovery boiler model: Q34/1100 -20-1.6/270, from the model, it can be judged that this is a waste heat boiler, the residual heat carrier is gas (Q), the residual heat load is 34 thousand cubic meters per hour, the residual heat carrier temperature is 1100℃, the rated evaporation is 20 tons / hour, the pressure is 1.6 MPa and the rated steam temperature is 270℃.

Therefore, if the customer wants to determine the model parameters of the 20t flue gas waste heat boiler, first of all, we must determine such as the amount of flue gas, the flue gas inlet temperature, flue gas composition, the smoke content, rated evaporation, rated steam, rated steam and other factors. Otherwise, the waste heat boiler is widely used, we can not recommended the model only according to the amount of evaporation, these elements must be determined according to the actual needs of the customer.

2. As to the size of the waste heat boiler, there is no definite answer, each industry application of waste heat boiler shape is different, waste heat boilers are shipped in bulk and it is very complicated to measure them before installation..

For more information about 20 ton waste heat boiler model and size, please consult our online customer service.
