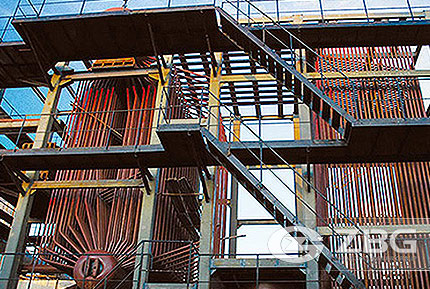

Traveling Grate Boiler

As a widely used heating equipment in industrial field, traveling grate boilers combine many patented designs and are leading in the world. It adopts the latest combustion theory product of Xi'an Jiaotong University, could burn different kinds of coal fuel and biomass fuel in a high combustion efficiency.

Type:Traveling Grate Boiler
Capacity/Hot Power:2-75t/h
Pressure:≤5.29MPa
Fuel:Coal,Biomass,Solid Fuel
Application:Central Heating,Thermal Power Plant,University,Utility

Application:

The traveling grate boilers can be applied in chemical plant, university, food factory, beverage factory, cannery, textile mills, paper mill, sugar plant, central heating and other industries.

Features:

1.Adopts the membrane water-cooling wall structure to keep the boiler has a high heat transmission coefficient, low heat loss, good airtightness, no distortion for furnace wall and no ash leakage.

2.Large combustion chamber ensures the high combustion efficiency of the boiler

3.Inverted "α" arch furnace technology Xi'an Jiaotong University improved the fuel combustibility and it can adjusted itself to widely kinds of coal and biomass fuel

4.The boiler can adapt to the requirement of starting and stop, there is good peak regulation, starting fast

5.Advanced boiler grate design reduce the air leak efficiently, so the grate can operate stably and the combustion efficiency is grate improved, better grate colling effects, low breakdown rate, the service life is extended.

6.Optimization of air structure keeps the fully combustion of fuel in furnace, low energy cost, low environment pollution
