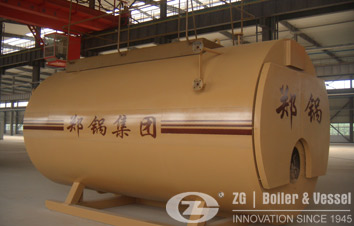

2 Ton Oil Gas Steam Boiler Technical Parameters

ZG Boiler is a China leading manufacturer and supplier of gas oil fired boiler, we have fire tube gas oil boiler, water tube gas oil boiler and gas oil power plant boiler. The WNS series boiler is horizontal three-pass fire tube gas oil boiler. It is mainly composed by boiler shell, furnace, combustion chamber, flue gas pipes, etc. This paper will give some main technical parameters of 2 ton oil gas fired steam boiler.

2 ton oil gas fired boiler parameter

Boiler model: WNS2-1.25-Y(Q)
Rated steam capacity: 2t/h
Rated steam pressure: 1.25 MPa
Thermal efficiency 90%
Rated steam temperature: 194℃
Feedwater temperature: 20℃
Power: 380V/50HZ
Water volume:3.07m³
Feedwater mouth: DH40mm
Delivering size: 3750×1900×2150 (mm)
Weight: 7202Kg
Design fuel: natural gas, LPG, light oil, heavy oil, diesel oil

2 ton gas oil steam boiler features

Three-pass, wet-back structure
Advanced corrugated furnace structure
Simple to inspect, easy for maintenance
Multiple protection function
High thermal efficiency, equipped with imported burners
Energy saving, environmental friendly
Packaged boiler, quick to install

AS one of the implementation sub-items awarded by the world bank GEF efficient environmental protection boiler project, the main technical parameters of WNS Series Horizontal Oil Gas Boiler that's developed by our company for the technical cooperation with the German have reached the advanced world level. If you are looking for gas oil boiler supplier, don’t hesitate to contact us, we’d like to provide you high performance and price ratio boiler solutions!
