Fire Tube Boiler(Shell Type Boiler)

Due to their low cost, high efficiency and energy saving, more than 10,000 Fire Tube Boilers are installed worldwide. Our packaged fire tube boiler is three-pass wet-back structure, offering our clients tailor-designed heat and power solution.

ZBG Fire Tube Boiler is more and more popular every year. Every year, ZBG offers fire tube boilers... to Vietnam, Indonesia, UAE, India, South Africa, Kazakstan, Mexico, Zimbabwe, Philippines, Pakistan, Chile, Iran, Egypt, Kenya, Turkey, etc. Our boilers with ASME, ISO certifications provide steam and hot water needs both energy and cost efficient.

If you have any questions, please Email us at [email protected] or Call us at 0086-371-86062323 for more support.

Why Choose Packaged Fire Tube Boiler?

Packaged Fire Tube Boiler Features
  • Relatively inexpensive
  • Easy to clean
  • Compact in size
  • Available in sizes from 1 ton/hr to 20 ton/hr
  • Easy to replace tubes
  • Well suited for space heating and industrial process applications

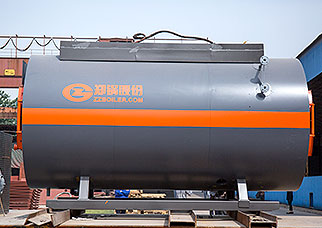

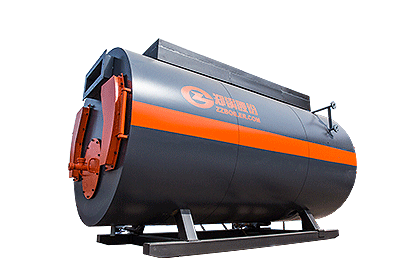

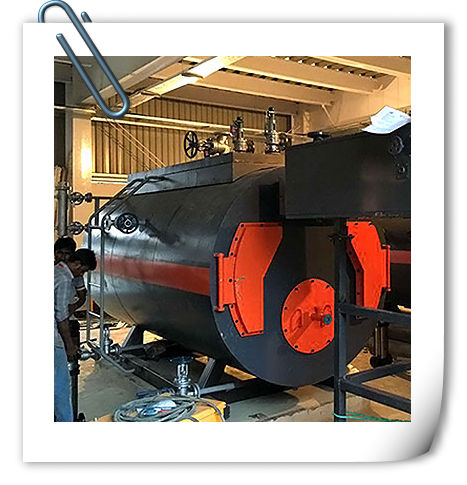

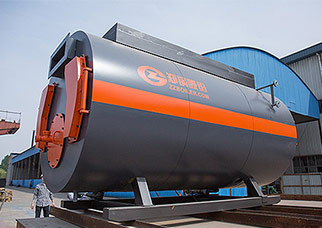

WNS Gas & Oil Fire Tube Boilers

Capacity/Hot Power: 1 ton-20 ton, 0.7MW-14MW
Pressure: 0.7-1.25 MPa

Advantage:

  • Three-pass wet back design, Packaged fire tube layout
  • Fully-automatic burners achieving highly efficient boiler combustion
  • PLC-based boiler control ensures a secure and reliable automatic boiler control and operation
  • Easy inspection and maintenance with rear view device

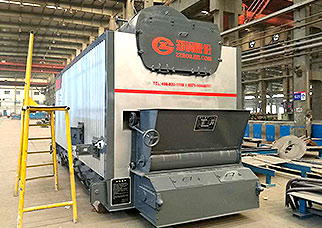

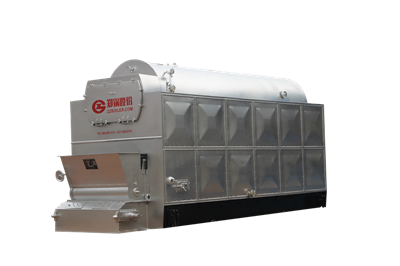

DZL Packaged Biomass & Coal Water Fire Tube Boiler

Capacity/Hot Power: 2 ton-10 ton
Pressure: 0.8-1.6Mpa

Advantage:

  • Multi-fuel capability(coal, biomass or co-firing)
  • Compact structure, small size
  • Quick and easy transportation & installation
  • Highly efficient and reliable
  • Cost-effective, save your money

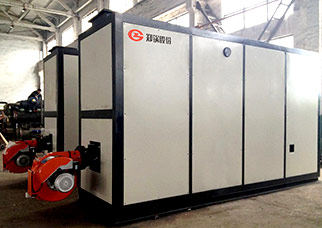

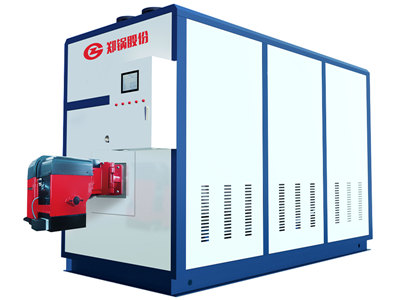

ZWNS Vacuum Oil & Gas Fired Fire Tube Boiler

Hot Power: 0.35-14MW
Pressure: -0.02MPa

Advantage:

  • Apply for multiple heating or hot water application
  • The unit is in vacuum state, no explosion
  • High thermal efficiency up to 92%
  • Imported burners burners achieving highly efficient combustion
  • No need for annual inspection, save maintenance cost
  • Heat exchanger and boiler body are integrated, saving boiler space


Where Fire Tube Boilers Are Applied/ Fire Tube Boiler Application

Fire tube boilers can be used in steam or hot water applications, such as food & beverage, paper & cardboard, laundry, tanneries, textile, packaging, wood, machinery factory, metallurgical plants, infrastructure & bitumen, plastic & rubber, chemical, pharmaceutical, power plant, district heating and large buildings heating.

  • food fire tube boiler

    food industrial

  • Central Heating fire tube  Boiler

    Central Heating

  • Chemicals Industrial fire tube  Boiler

    Chemicals Industrial

  • Hotel industry fire tube  Boiler

    Hotel industry

  • swimming pool fire tube  boiler

    swimming pool

  • textile mill fire tube  boiler

    Textile Mill

Fire Tube Boilers CASE

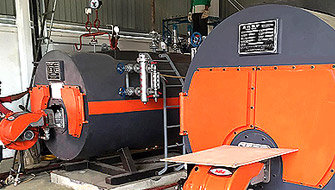

Two Sets Of Gas fire tube Boiler in Beijing
Two Sets Of Gas Fired tube Boiler in Beijing
Equipment:WNS14-1.0/95/70-Y、Q, WNS7-1.0/95/70-Y、Q
Application background:
To meet the ever-increasing heating demand, a heating company in Beijing, China ordered 14 MW and 7 MW gas fired hot water boiler from our company. In March, 2015, the two sets of hot water boilers has completed the efficiency tests and they are proved to be high efficiency, less heat losses and environmental friendly.
Two Sets 8t Hot Water Heating fire tube Boiler in Handan
Equipment: ZWNS Hot Water Boiler
Application background:
With the increasing need in heating for people's daily life, the traditional boiler can not meed the need with low efficiency and high consumption. In order to solve this problem, ZG Boiler invented new vacuum boiler, which improved the efficiency of hot water boiler. The two vacuum hot water boilers in Handan provided enough energy for the industry, saved the cost.
Two Sets 8t Hot Water Heating Boiler in Handan

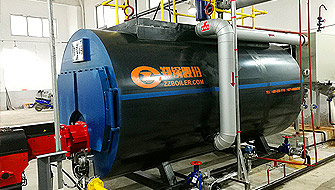

5.6 MW oil fired boiler exported to Russia
5.6 MW oil fired tube boiler exported to Russia
Equipment:WNS5.6-1.0/115/70-Y
Application background:
Food Industry
3 ton gas fire tube boiler exported to Indonesia
Equipment: WNS3-1.0-Q
Application background:
Through many times investigation,a large seafood products enterprise in Indonesia ordered WNS3-1.0 - Q type gas fired boiler from ZBG Boiler to replace the old and low efficient boiler.

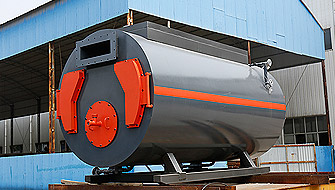

3 ton gas fired hot water boiler exported to Indonesia

Relate Products

Inquiry
The form below with * are required, please fill in your detailed requirements, example: Evaporation capacity, Outlet steam pressure, Outlet steam temperature, etc..
